Structural Parts Liquid Painting Line with Customizable Automated Coating System
This production line is purpose-built for coating carbon steel structural elements and provides two application methods to suit different requirements.
Application Options

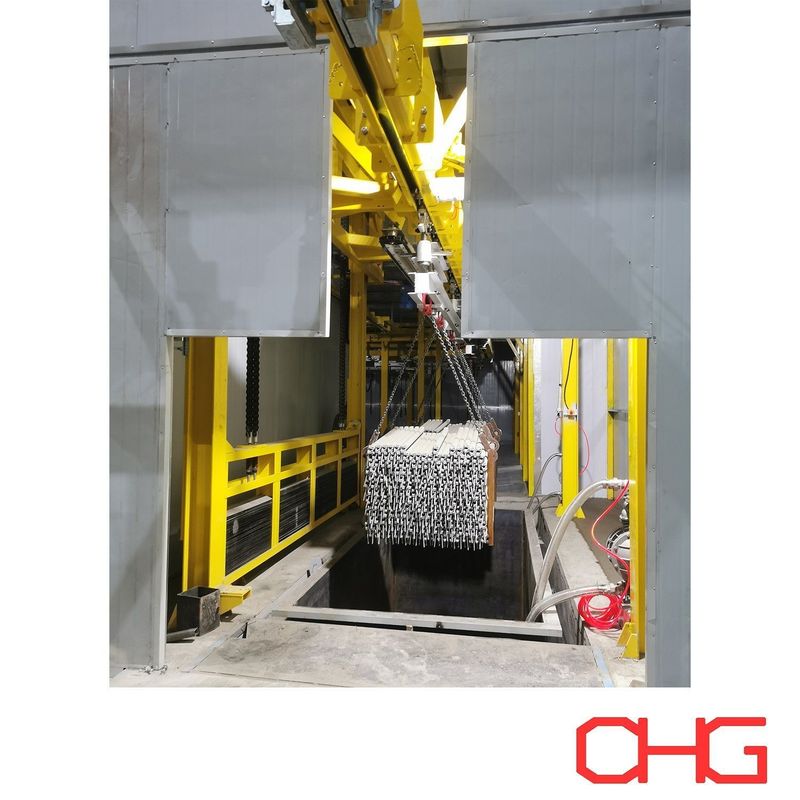

Immersion painting with angled basket design
Material Handling

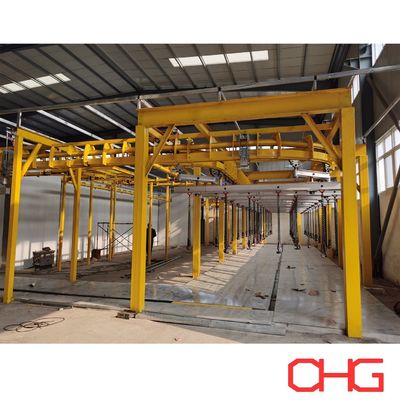

Power & free overhead conveyor system
Forklift-supported manual loading and unloading
Main Characteristics
Specially developed for medium to large structural parts
Tailored for carbon steel surface treatment and coating
Flexible process layout enabling multiple coating approaches
Core Equipment
Motor-driven conveyor with adjustable speed range
45° angled immersion unit ensuring full surface coverage

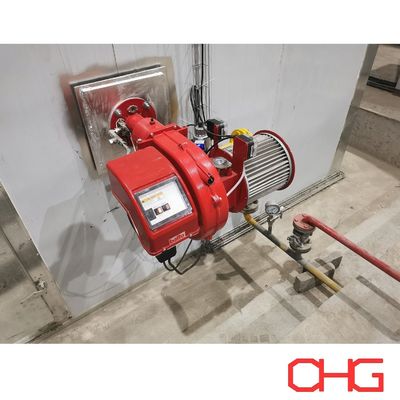

Independent drying and curing sections
Operating Specifications
Maximum load: up to 2000 kg per carrier
Line speed adjustable between 0.5–3.0 m/min
Customizable dipping tank size
Process Workflow
Forklift-assisted manual loading → Basket dipping & coating (approx. 6 min) → Draining/paint dripping (about 90 min) → Drying (48 min at 60–80°C) → Natural cooling (around 6 min) → Forklift-assisted manual unloading
Benefits:
| Superior Coating Performance | Our dipping coating line ensures uniform and comprehensive coverage, offering outstanding protection against corrosion and environmental factors. This guarantees the long-term durability of your carbon steel structural components. |
| Boosted Production Efficiency | Leverage our accumulation conveyor system and automated material handling to achieve higher production throughput, minimize downtime, and enhance overall operational efficiency. |
| Enhanced Cost-Effectiveness | The precise dipping process, coupled with energy-efficient drying and curing ovens, optimizes material usage. This reduces waste and lowers operational costs, improving your bottom line. |
| Exceptional Finish Quality | Benefit from advanced technology and stringent quality control measures that ensure a flawless, consistent finish. This not only elevates the aesthetics but also enhances the market appeal of your carbon steel components. |
Invest in our cutting-edge Carbon Steel Structural Parts Liquid Dipping Coating Line for unrivaled coating results. Experience the benefits of precise immersion, enhanced productivity, and superior finish quality. Elevate your coating capabilities with our advanced solution today.
Feel free to contact us to get your exclusive design proposal. We can also customize other types of coating production line based on product characteristics.
