Powder Coating Line for Automobile Oil Filter Housing

Fully Automatic Powder Coating Line for Automotive Oil Filter Housings

Engineered for High-Volume Automotive Component Finishing

This automated powder coating line is specially developed for the surface treatment of automotive oil filter housings fabricated from galvanized steel. Designed for continuous production, the system combines advanced powder application technology, efficient material handling, and intelligent process control to achieve outstanding coating consistency, productivity, and long-term reliability.

The line utilizes a monorail floor conveyor system for stable workpiece transportation and incorporates a fully automatic powder coating process to ensure uniform coverage and repeatable coating quality across large production volumes.

Production Line Configuration

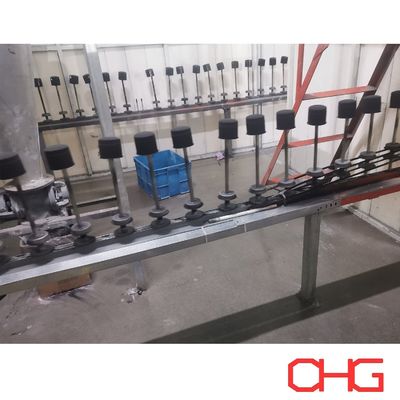

Monorail Ground Conveyor System

A customized floor-mounted conveyor system transports oil filter housings smoothly through every stage of the coating process. Designed according to the dimensions, weight, and production requirements of the workpieces, the conveyor provides accurate positioning and stable movement throughout the line.

Conveyor Benefits

• Continuous and reliable workpiece transportation

• Stable positioning during coating operations

• Adaptable to different oil filter housing specifications

• Optimized material flow for automated production

Surface Pretreatment System

Prior to coating, components undergo a carefully controlled pretreatment process designed to prepare the substrate for maximum coating performance.

Typical pretreatment stages may include:

• Degreasing

• Cleaning

• Surface conditioning

• Conversion coating

• Water rinsing

These processes remove contaminants, improve coating adhesion, and enhance corrosion resistance.

Automatic Powder Application System

The powder coating section utilizes automatic electrostatic spray equipment to deliver consistent coating thickness and high transfer efficiency.

The spray booth is manufactured from corrosion-resistant polypropylene (PP), providing excellent chemical resistance and long service life in demanding production environments.

Powder Coating Advantages

• Uniform coating distribution

• High transfer efficiency

• Reduced powder consumption

• Improved coating appearance

• Consistent product quality

Powder Recovery System

To maximize material utilization, the production line is equipped with an efficient powder recovery and recycling unit.

Oversprayed powder is automatically collected, filtered, and returned to the coating process whenever possible, helping reduce waste and operating costs.

Key Benefits

• Lower powder consumption

• Reduced material waste

• Improved production efficiency

• Environmentally responsible operation

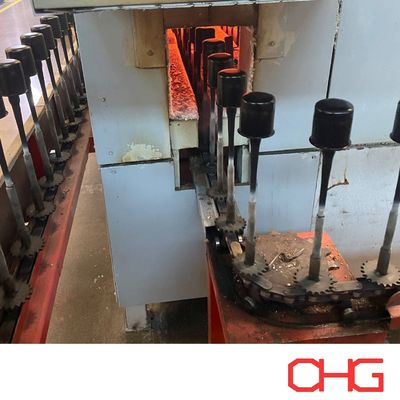

High-Efficiency Curing Oven

After powder application, coated components enter a temperature-controlled curing oven where the powder coating undergoes melting, flow-out, and cross-linking.

The optimized oven design ensures stable curing conditions, resulting in a durable and uniform coating film with excellent mechanical and corrosion-resistant properties.

Intelligent Process Control

An integrated automation system continuously monitors and controls critical production parameters, including:

• Conveyor speed

• Powder output

• Electrostatic spraying performance

• Oven temperature

• Process timing

This intelligent control architecture ensures repeatable coating quality, reduced operator intervention, and efficient production management.

Optional Multi-Coat Configuration

Depending on product requirements, the line can be configured to support multi-layer coating systems, including:

• Primer coating

• Intermediate coating

• Topcoat finishing

The conveyor system enables seamless transfer between process stages while maintaining production continuity and coating consistency.

Main Advantages

• Consistent Coating Quality

Automatic electrostatic spraying delivers uniform film thickness and excellent surface appearance across all workpieces.

• Improved Corrosion Protection

The combination of pretreatment and powder coating technology provides long-lasting protection against corrosion and environmental exposure.

• High Production Efficiency

Automated transportation, coating, and curing processes support continuous high-volume manufacturing.

• Reduced Operating Costs

Integrated powder recovery technology minimizes material loss and improves overall process economy.

• Reliable Automated Operation

Advanced control systems maintain stable production conditions and ensure consistent product quality.

Customized Solutions Available

Each powder coating line can be tailored according to:

• Workpiece dimensions

• Production capacity

• Coating specifications

• Factory layout

• Automation requirements

• Environmental standards

Contact us to receive a customized technical proposal and discover how our automated powder coating solutions can enhance the quality, efficiency, and profitability of your automotive component manufacturing operations.
